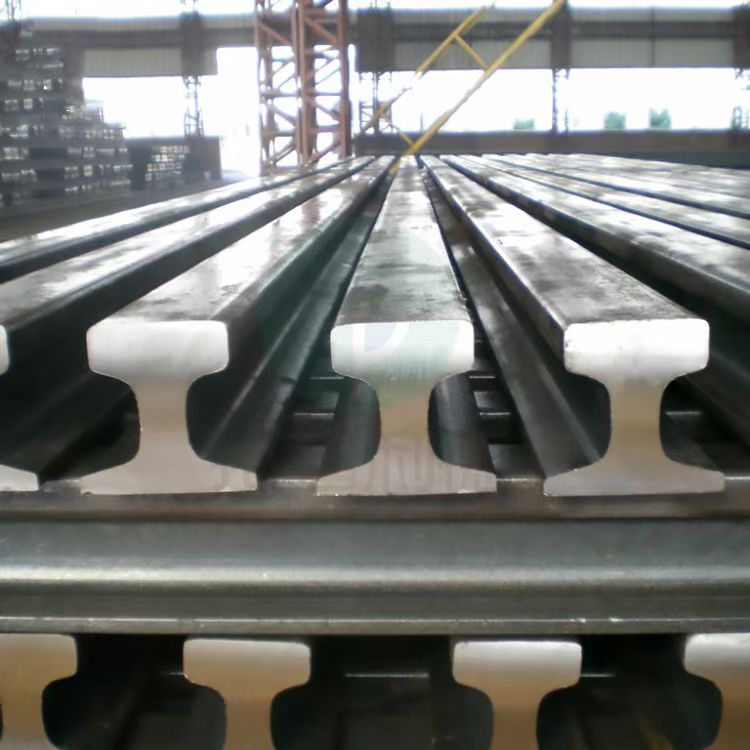

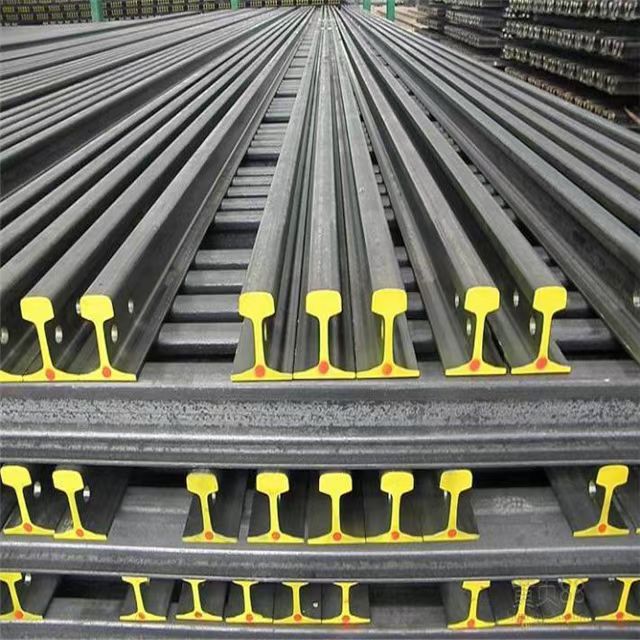

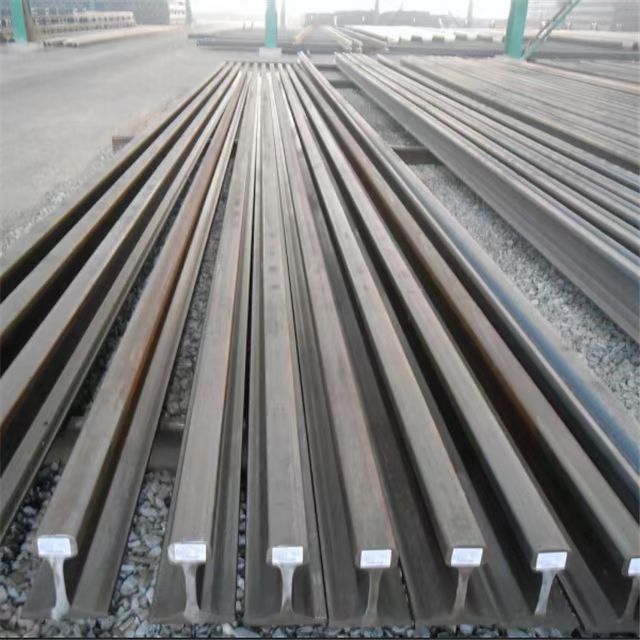

Steel Rail

zhongxiang can provide different standard steel rail such as American, BS, UIC, DIN, JIS, Australian and South Africa which used in railway lines, cranes and coal mining.

ke@sdzhongtuo.com

+8615315761893

// Product Description //

Rail track is an essential component of rail track, and its function is to guide the train wheels moving forward by withstanding the enormous pressure pushed by the wheels. Steel rail shall

provide smooth, stable and continuous rolling surface for the passing train wheels. In electrical railway or automatic block section, railway track can also be used as track circuit.

Modern rails all uses hot rolled steel, and minor flaws in the steel may pose dangerous factor to the safety of railway and the passing train. So rails shall pass strict quality testing and meet

the quality standard. Steel rails shall be capable of high stress and resistant to tracking. Steel rail shall be free from internal cracks and be resistant to fatigue and wear resistance.

American Standard Steel Rail

ASTM standard, AREMA standard
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Foot	Thickness	Weight (kg/m)	Length(m)
ASCE 25	38.1	69.85	69.85	7.54	12.4	6-12
ASCE 30	42.86	79.38	79.38	8.33	14.88
ASCE 40	47.62	88.9	88.9	9.92	19.84
ASCE 60	60.32	107.95	107.95	12.3	29.76
ASCE 75	62.71	122.24	122.24	13.49	37.2	12-25
ASCE 85	65.09	131.76	131.76	14.29	42.17
ASCE 90	69.09	130.18	142.88	14.29	44.65
ASCE 115	69.06	139.7	168.28	15.88	56.9
ASCE 136	74.61	152.4	185.74	17.46	67.41
ASCE 175	109.86	152.4	152.4	38.1	86.8

BS11:1985 Standard Steel Rail

Standard: BS11:1985
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Bottom	Thickness	Weight (kg/m)	Length(m)
50 O	52.39	100.01	100.01	10.32	24.833	6-18
60 A	57.15	114.3	109.54	11.11	30.618	6-18
75 A	61.91	128.59	114.3	12.7	37.455	8-25
75 R	61.91	128.59	122.24	13.1	37.041
80 A	63.5	133.35	117.47	13.1	39.761
80 R	63.5	133.35	127	13.49	39.674
90 A	66.67	142.88	127	13.89	45.099
100 A	69.85	152.4	133.35	15.08	50.182
113 A	69.85	158.75	139.7	20	56.398

UIC 860 Standard Steel Rail

Standard: UIC860
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Bottom	Thickness	Weight (kg/m)	Length(m)
UIC50	70	152	125	15	50.46	12-25
UIC54	70	159	140	16	54.43
UIC60	74.3	172	150	16.5	60.21

DIN 13674-1-2003 Standard Steel Rail

Standard：DIN 536
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Bottom	Thickness	Weight (kg/m)	Length(m)
A55	55	65	150	31	31.8	10-12
A55	65	75	175	38	43.1
A75	75	85	200	45	56.2
A100	100	95	200	60	74.3
A120	120	105	200	72	100

Australian 1085 Standard Steel Rail

Standard: AS 1085
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Bottom	Thickness	Weight (kg/m)	Length(m)
31KG	63.5	117.5	108	11.5	31.5	8-25
47KG	70	141.3	127	14.3	46.5
50KG	70	154	127	15	50.8
60KG	70	170	146	16.5	61
68KG	73.4	186	152	17.5	67.6
73KG	70	157	146	32	73.63
86KG	102	102	165	84.11	85.5
89KG	102	114	178	51	89.81

JIS E 1103/1101 Standard Steel Rail

Standard: JIS E 1103/1101
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Bottom	Thickness	Weight (kg/m)	Length(m)
JIS 15KG	42.86	79.37	79.37	8.33	15.2	9-10
JIS 22KG	50.8	93.66	93.66	10.72	22.3	9-10
JIS 30A	60.33	107.95	107.95	12.3	30.1	9-10
JIS 37A	62.71	122.24	122.24	13.49	37.2	10-25
JIS 50N	65	153	127	15	50.4	10-25
CR 73	100	135	140	32	73.3	10-12
CR 100	120	150	155	39	100.2	10-12

South African Standard Steel Rail

Standard: ISCOR
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Bottom	Thickness	Weight (kg/m)	Length(m)
15 KG	41.28	76.2	76.2	7.54	14.905	9
22 KG	50.01	95.25	95.25	9.92	22.542	9
30 KG	57.15	95.25	109.54	11.5	30.25	9
40 KG	63.5	127	127	14	40.31	9-25
48 KG	68	150	127	14	47.6	9-25
57 KG	71.2	165	140	16	57.4	9-25

Chinese Standard Light Rail

Standard: GB11264-89
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Bottom	Thickness	Weight (kg/m)	Length(m)
GB6KG	25.4	50.8	50.8	4.76	5.98	6-12
GB9KG	32.1	63.5	63.5	5.9	8.94
GB12KG	38.1	69.85	69.85	7.54	12.2
GB15KG	42.86	79.37	79.37	8.33	15.2
GB22KG	50.3	93.66	93.66	10.72	23.3
GB30KG	60.33	107.95	107.95	12.3	30.1
Standard: YB222-63
8KG	25	65	54	7	8.42	6-12
18KG	40	90	80	10	18.06
24KG	51	107	92	10.9	24.46

Chinese Standard Heavy Rail

Standard: GB2585-2007
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Bottom	Thickness	Weight (kg/m)	Length(m)
P38KG	68	134	114	13	38.733	12.5-25
P43KG	70	140	114	14.5	44.653
P50KG	70	152	132	15.5	51.514
P60KG	73	170	150	16.5	61.64

Chinese Standard Crane Rail

Standard: YB/T5055-93
Size	Dimension(mm)				Weight (kg/m)	Length(m)
Size	Head	Height	Bottom	Thickness	Weight (kg/m)	Length(m)
QU 70	70	120	120	28	52.8	12
QU 80	80	130	130	32	63.69
QU 100	100	150	150	38	88.96
QU 120	120	170	170	44	118.1
